Home » Products » Cream, gel, lotion, paste filling machine » Laminated Tube Filling Machine

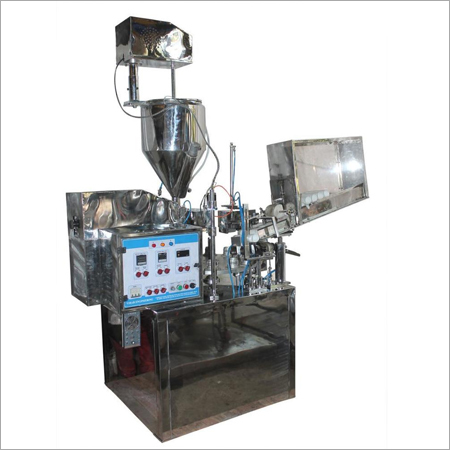

Laminated Tube Filling Machine

Laminated Tube Filling Machine
Laminated Tube Filling Machine
Product Code : 04
Product Specifications
  • Product Type
  • cream or paste
  • Material
  • S.S. 304 / S.S.316
  • Application
  • Other
  • Packaging Material
  • Wood
  • Computerized
  • No
  • Automatic Grade
  • Automatic
  • Control System
  • Frequency Speed Control
  • Drive Type
  • Electric
  • Voltage
  • as per requirement
  • Weight (kg)
  • as per requirement
  • Dimension(L*W*H)
  • as per requirement
  • Capacity
  • as per requirement
  • Warranty
  • 1 year
Trade Information
  • Minimum Order Quantity
  • 1 pcs
  • FOB Port
  • Mumbai
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C)
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

We are a well known manufacturer and supplier in this industry for offering a well-designed range of Laminated Tube Filling Machine. We engineer these machines by using optimum quality of raw materials that we source from reliable vendors of the industry and cutting edge technologies to match with the quality standards of the industry. Our offered range of machines are available in various capacities to meet the needs of our prominent clients. These tube filling machines offered by us are widely appreciated for their outstanding features such as high performance, robust construction and long service life. Our Laminated Tube Filling Machine is widely used in cosmetics, chemicals and pharmaceuticals industries for filling the products into tubes.

Features:

  • Perfect for all aluminum as well as plastics compounds filling and sealing
  • Automatically fill, seal and stamp
  • Unmatched quality stainless steel used
  • Alkali, acid, and corrosion proof
  • Fast packing and unloading speed
  • Manual and automatic control
  • Rotating manual valve
  • Airproof hopper
  • Auto-feed
  • Highly durable
  • Noiseless operation
  • Low maintenance
Optional Accessories
  • Hot air sealing
  • Jacketed Stirrer and Hopper
  • Arrangement of Batch Coding (Female Type)
  • Transfer Pumps and Orientation
  • Attachment for Tube Cleaning
Technical Specifications

Filling Station:
These machines consist of a hopper of capacity 40kg. with cut off valve that is connected to the filling cylinder which also has a capacity adjusting arrangement. The delivery nozzle is provided with special pneumatic cut off system to prevent dripping.

Sealing System:
This system comprises of a pre heating station and a sealing station.

Heating Station:
This station is compressed with hot air is blown to pre- heat the sealing area . The compressor air is then heated in a chamber that is fitted with a hot air tool leister. The Pneumatic regulator is provided to control the air pressure and a temperature controller to control the heat.

Sealing Station : This station is pneumatically operated and special jaws seal the tube. Batch coding is done at this station.


Trimming Station:
The uneven end is trimmed at this station .

Batch-Coding Station :
Batch coding is provided at the Sealing station.

Ejection:
The tubes are automatically ejected at this station

Output:
1500-1800 tubes per hour single head

Electrical:
The machine is fitted with 1 Hp motor that is 1440 rpm Hindustan make along with 30:1 ratio gear box, electrical panel box and a no tube, no fill process is also provided.

Note:
An air compressor of 3Hp is required.

Dimensions :
L 1330mm x W 920mm x H 1850mm
